Name: Altitude & Pressure Test Chamber for Battery Testing IEC 61960 150L
Brand: Sinuo Testing Equipment Co. , Limited
SKU: Les produits de base sont les suivants:
Availability: InStock

Nombre De Pièces:	1
Prix:	Customized
Emballage Standard:	Casse en contreplaqué
Période De Livraison:	30 jours
Méthode De Paiement:	T/T
Capacité D'approvisionnement:	10 ensembles par mois

Détails Informations

Description du produit

Les informations détaillées

Lieu d'origine

Chine

Nom de marque

Sinuo

Certification

Calibration Certificate(Cost Additional )

Numéro de modèle

Les produits de base sont les suivants:

plage de température:

Température ambiante

Chaîne de vide:

1 atm ~ 8000 m

Fluctuation de pression:

moins de 3%

Résolution de pression:

0,01 Kpa

Taux de fuite de vide:

0.5 KPA/heure

Temps d'évacuation:

Approximativement 20 minutes de pression atmosphérique à une altitude de 8000m

Mettre en évidence:

Chambre d'essai à pression précise

Chambre d'essai sous pression pour batterie

Description du produit

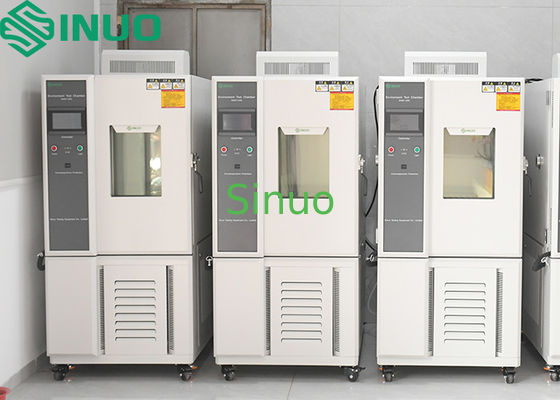

Altitude & Pressure Test Chamber for Battery Testing IEC 61960 150L

Product information:

The altitude and pressure test chamber is widely utilized in various research and application fields, including biochemistry, chemical and pharmaceutical industries, healthcare, agricultural research, new energy, and electronics. It is designed for rapid and efficient drying of powders, baking, and drying heat-sensitive, easily decomposable, or oxidizable substances, as well as materials with complex compositions. The chamber complies with industry standards such as UN 38.3, UL 1642, and IEC 61960.

Structure:

1. The chamber is made of high-quality cold-rolled steel plate with an electrostatic powder coating on the surface, providing a hard and durable coating with excellent rust resistance.

2. The working chamber is made of high-quality brushed stainless steel plate with a thickness of 5mm.

3. Reinforcement treatment is applied between the chamber and the working chamber.

4. The chamber door is constructed with a double-layer tempered glass structure, allowing a clear view of the items inside.

A rubber sealing ring is installed between the working chamber and the glass door to ensure a high level of vacuum inside the chamber.

Technical parameter:

Internal Dimensions	500mm (W) × 500mm (D) × 600mm (H)
Approximate External Dimensions	700mm (W) × 700mm (D) × 1650mm (H) (subject to actual product)
Control Panel	Located on the machine door
Door Opening Method	Single door, opens from right to left
Sealing Material	Silicone strip
Chamber Structure	High-pressure product laboratory with a pressure display panel
Pressurization Pump Installation	Installed at the lower part of the machine
Internal Chamber Material	SUS304# stainless steel industrial plate, 5.0mm thick, reinforced to prevent deformation under pressure
External Chamber Material	1.2mm thick cold-rolled steel plate
Operating Environment	temperature: 5 to 25℃ humidity: 35% to 75%
Vacuum Range	Atmospheric pressure to an altitude of 8000m (vacuum level can be set as needed)
Vacuum Leakage Rate	0.5 KPA/hour (automatic compensation)
Pressure Fluctuation	Less than 3%
Evacuation Time	Approximately 20 minutes from atmospheric pressure to an altitude of 8000m
Pressure Resolution	0.01 KPA (altitude display accurate to meters)
Power Supply	AC 220V 50Hz 2KW
Internal Power Input	Equipped with an aviation plug and two/three-pin sockets, allowing for powered testing inside the chamber
Sealing and vacuum display	1.This machine uses a high-density silicone sealing strip at the door for excellent overall sealing performance. 2.A 7-inch custom touch-screen digital vacuum gauge is used to display the vacuum level inside the chamber and the negative pressure gauge. 3. Vacuum Sensor: Electronic pressure transmitter. 4. Vacuum Gauge Display Range: 0 KPa to 120 KPa. 5. Pressurization Control Method: Automatically controlled—stops when reaching the upper limit, starts when below the lower limit, cycling to maintain optimal high-pressure conditions. 6. Pressurization Pump Configuration: Equipped with one pressurization pump. 7. Pressure Relief & Exhaust System: Requires venting to the outside (automatic or manual).

Les étiquettes:
