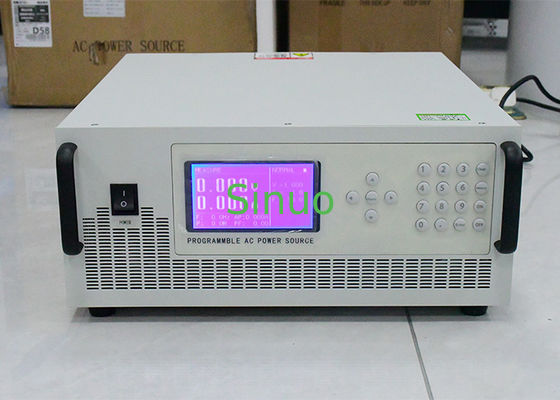

Programmable AC Constant Current Source 5V 300A SPWM constant current tester

Programmable AC Constant Current Source 5V 300A SPWM constant current tester


Product overview:

CCS2000 series programmable AC constant current source adopts SPWM high frequency pulse width modulation to provide pure and stable sine wave with small harmonic components, no interference and high precision. It can modulate the output current and frequency, with fast response speed, high constant current precision and long-term stable operation. It can also overcome the current changes caused by grid voltage fluctuations, loop resistance changes and product internal resistance changes, and is not affected by human factors. It has small size, high efficiency, reliability and maintenance cost compared with traditional voltage regulators. It provides embedded intelligent PC monitoring system, which can be used with advanced production line systems or used alone. It is mainly used for current thermal effect testing and application of specific products, such as protective switches such as circuit breakers, fuses, thermal relays, magnetic starters and various transformers, which need to set rated current, operating current, short-circuit current and other thermal effects for testing. Low-voltage electrical appliance manufacturing enterprises, electrical appliance testing institutions, electrical appliance research units, and university training bases. Molded case circuit breaker delay characteristic test and verification equipment, molded case circuit breaker instantaneous characteristic test and verification equipment, small circuit breaker instantaneous characteristic test and verification equipment, lean production testing line.


Features:

◇Constant current, constant current adjustment range: 0-rated value continuous adjustment;
◇Constant voltage, constant voltage adjustment range: 0-rated value continuous adjustment;
◇Variable frequency, frequency adjustment range: 45.0Hz-500.0Hz, step 0.1Hz (0.001Hz can be customized);
◇When using constant current and constant voltage, it can automatically cross-convert to maintain the characteristics of both control and protection;
◇Provide RMS voltage, RMS current, active power, frequency, power factor and other measurements;
◇Digital keyboard input, easy to use and high accuracy;
◇This machine can execute 30 groups of different current, voltage, frequency, rise time, running time at a time, and can perform one million cycle tests continuously;
◇It has 9 groups of data storage functions for easy call when using;
◇It has RS232C, RS485 [IEEE488.2 (GPIB) optional] communication functions;
◇Provide embedded intelligent PC monitoring system.
◇Special voltage and current customization


Technical parameters:
