Complete IPX1-IPX8 Waterproof Testing System for IEC 60529 Compliance

Nombre De Pièces: 1
Prix: Customized
Emballage Standard: contre-plaqué
Période De Livraison: 30 jours
Méthode De Paiement: T/T, Union occidentale
Capacité D'approvisionnement: 10 ensembles par mois
Les informations détaillées
Description du produit
Les informations détaillées
Lieu d'origine
Chine
Nom de marque
Sinuo
Certification
Calibration Certificate (Cost Additional)
Numéro de modèle
SN4418
Norme appliquée:
IEC 60529
Diplômes IP:
IPX1~IPX8
Méthode de contrôle:
Programme de PLC
Dispositif d'affichage:
Écran tactile
Zone d'égouttement:
1000×1000mm
Tubes de oscillation:
R200 à R1600 mm
Réservoir IPX7:
Acier inoxydable, 500L
Réservoir IPX8:
Diamètre 0,6 m
Description du produit

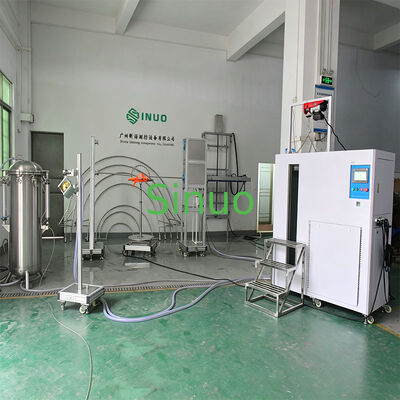

Complete IPX1-IPX8 Waterproof Testing System for IEC 60529 Compliance
One Integrated System Covers All IPX1-IPX8 Waterproof Tests.
This comprehensive IPX1~8 waterproof test system conforms to IEC 60529:2013 standards and meets the requirements of IEC60335-1 clause 15. The integrated system provides complete testing capabilities for all IP waterproof ratings.
System Components Overview
No. Component Name IP Code Specifications
1 Vertical Rain Drip Test Apparatus IPX1~2 Drip area: 1000mm*1000mm
2 Oscillating Tubes Test Apparatus IPX3~4 Multiple tube radii: R200mm to R1600mm
3 Spray Nozzle IPX3~4 Manual operation for hard-to-reach areas
4 Hose Nozzle IPX5~6 High-pressure water jet testing
5 Integrated Immersion Chamber & Control System IPX7 Chamber size: 650mm*600mm*1500mm
6 Deep Immersion Tank IPX8 Pressure vessel: φ600*1000mm
7 Turntable Accessory φ600mm, 150kg bearing capacity
1. Vertical Rain Drip Test Apparatus (IPX1~2)
This test device verifies protection against vertically falling water drops, designed in accordance with IEC60529 IPX1 and IPX2 standards.
Key Features:
  • Motor-controlled drip box elevation
  • Stainless steel fine filter for dirt filtration
  • Compressed air system to prevent needle clogging
  • Stainless steel medical needle nozzles
  • Tool-free nozzle replacement
Parameter Specification
Application IPX1, IPX2 testing
Rain Area 1000mm × 1000mm
Tank Material Stainless steel
Dripping Aperture ￠0.4mm
Hole Distance 20mm
Rainfall Flow 1mm/Min, 3mm/Min, user-set parameters (±0.5mm/min error)
Water Dripping Height 200mm (automatically controlled)
Test Time 10Min minimum (user configurable)
Body Material Industrial aluminum alloy
Dimensions (L×D×H) 1100×1200×2800mm
Vertical Rain Drip Test Apparatus showing drip box and control mechanism
2. Oscillating Tubes Test Apparatus (IPX3~4)
Designed for IPX3 and IPX4 testing with precise angle control and multiple tube configurations.
Parameter Specification
Water Supply ＞10L/min±5% clean filtered water
Oscillating Tubes R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm (stainless steel)
Needle Hole Φ0.4mm
Included Angle IPX3: 120°; IPX4: 180°
Swing Angle Maximum ±175° (presettable)
Swing Speed IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°)
Water Flow 0.07 L/min per hole (configurable)
Testing Time 0.01S ~ 99 hours 59mins (presettable)
Pressure Gauge 0~0.25MPa
Oscillating Tubes Test Apparatus showing multiple tube configurations
3. Spray Nozzle (IPX3~4)
Handheld spray nozzle for manual testing of enclosure areas inaccessible to oscillating tubes.
Parameter Specification
Water Supply 50～150kpa clean water
Nozzle Diameter External: Ф102mm; Spherical: SФ75.5mm
Hole Configuration 121 holes total: 1 middle hole, 24 inner holes (30°), 96 outer holes (15°)
Hole Diameter Ф0.5mm
Material Brass
Water Flow 10L/min±5% (adjustable with flow meter)
Baffle Removable for IPX4 testing
Spray Nozzle showing detailed hole pattern and construction
4. Hose Nozzle (IPX5~6)
High-pressure water jet testing apparatus for IPX5 and IPX6 certification.
Parameter IPX5 Specification IPX6 Specification
Water Supply ＞12.5L/min±5% clean water ＞100L/min±5% clean water
Nozzle Diameter Ф6.3mm Ф12.5mm
Water Flow 12.5±0.625L/min 100±5 L/min
Distance to Enclosure 2.5~3m 2.5~3m
Testing Time ≥1min/m² (minimum 3 mins) ≥1min/m² (minimum 3 mins)
Test Room Requirements Width >3m with drainage Width >3m with drainage
Hose Nozzle apparatus for high-pressure water jet testing
5. Integrated Immersion Chamber & Control System (IPX7)
Central control and water supply system serving all IPX1~8 apparatus, including IPX7 immersion testing capability.
System Functions:
  • Water supply for IPX1~IPX6 testing
  • IPX7 water immersion testing
  • Water storage for IPX8 testing
  • Automated control for all waterproof equipment
Technical Features:
  • Constant temperature and constant flow water supply
  • PID temperature control: room temperature ~ 65℃ (±3℃)
  • Dual-flow water supply (large and small flow)
  • IPX7 immersion automatic lift bracket
  • Stainless steel fine filtration system
  • Industrial aluminum alloy construction
  • Touch screen interface with PLC control
Integrated Immersion Chamber and Control Cabinet showing complete system Control system interface and internal components
6. Deep Immersion Tank (IPX8)
Pressure vessel designed for IPX8 deep immersion testing under controlled pressure conditions.
Technical Specifications:
  • Pressure vessel: stainless steel tank, diameter 0.6m, height 1.2m
  • Pressure adjustment range: 0 ~ 5bar (customizable)
  • Pressure system: stainless steel pump + frequency converter
  • Pressure gauge accuracy: 0.25 degree, range: 6bar
  • Test time: 0-99 minutes programmable
  • Maximum limit pressure: 5bar
  • Pressure switch protection system
  • 3/4 high pressure steel wire hose connection
Deep Immersion Tank pressure vessel for IPX8 testing
7. Turntable Accessory
Essential accessory for IPX1~IPX6 testing, providing precise rotation and tilt capabilities.
Parameter Specification
Turntable Diameter Ø600mm
Turntable Speed 1rpm
Tiltable Angle 0° and 15° positions
Test Rotation Angle 90°, continuous rotation
Body Material Industrial aluminum alloy
Dimensions (L×D×H) 800×800×250mm
Load Capacity 150kg maximum
Control Reversible control via control cabinet
Turntable accessory with aluminum base and casters

Complete IPX1-IPX8 Waterproof Testing Solution for IEC 60529 Compliance

The IEC 60529 Full-featured IPX1-IPX8 Integrated Waterproof Testing System is a comprehensive solution designed for manufacturers, testing laboratories, certification bodies, and research institutes requiring complete water ingress protection testing.

Unlike conventional testing setups that require multiple independent systems for different IPX ratings, this integrated solution combines IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7, and IPX8 testing capabilities into one efficient platform.

With a single investment, users can perform the full range of waterproof testing required by IEC 60529 and related international standards.


Applicable Standards

  • IEC 60529
  • ISO 20653
  • IEC 60598
  • IEC 60335
  • IEC 62196
  • IEC 61851
  • UL Waterproof Testing Requirements


Key Advantages

✔ One Integrated System for IPX1-IPX8 Testing

✔ IEC 60529 Compliant Design

✔ Reduced Laboratory Space Requirements

✔ Lower Equipment Investment Costs

✔ Improved Testing Efficiency

✔ Suitable for Product Development, Certification, and Quality Control


Typical Applications

  • Home Appliances
  • EV Charging Equipment
  • EV Connectors and Charging Guns
  • Consumer Electronics
  • Outdoor Electrical Products
  • LED Lighting Products
  • Battery Packs and Energy Storage Systems
  • Automotive Components
  • Industrial Control Equipment


Why Choose an Integrated IPX1-IPX8 Testing System?

Many laboratories use separate systems for dripping, spraying, jetting, and immersion tests, resulting in higher investment costs and increased floor space requirements.

Sinuo's integrated IPX1-IPX8 waterproof testing system enables users to complete all required water ingress protection tests using one coordinated solution, improving laboratory efficiency and simplifying equipment management.

Whether you are building a new testing laboratory or upgrading existing facilities, this system provides a practical and cost-effective solution for complete IEC 60529 waterproof testing.


Which IPX Tests Can Be Performed?

Test Description
IPX1 Vertically Falling Water Drops
IPX2 Tilted Dripping Water Test
IPX3 Oscillating Tube Spray Test
IPX4 Splash Water Test
IPX5 Water Jet Test
IPX6 Powerful Water Jet Test
IPX7 Temporary Immersion Test
IPX8 Continuous Immersion Test


Need a Complete IPX1-IPX8 Waterproof Testing Solution?

✔ Free Technical Consultation

✔ Laboratory Planning Assistance

✔ Customized Test Solutions

✔ Global Installation Support

Get Your Proposal Within 24 Hours
